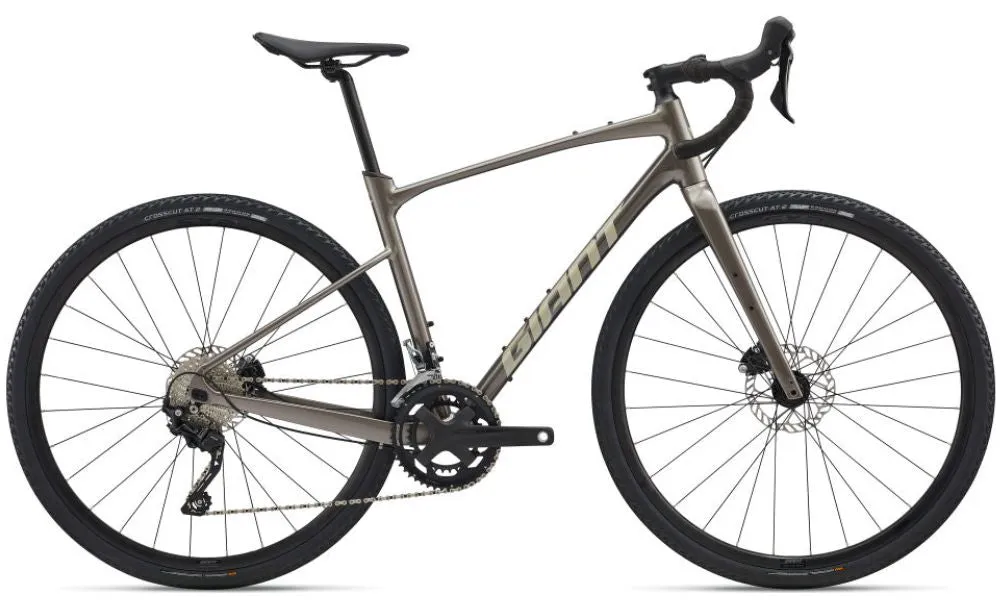

Giant 2025 Revolt 1

Please contact store for availability 04 589 2822 or

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Giant 2025 Revolt 1

Frame

Colour: Metal
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock: NA

Drivetrain

Crankset: FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals: NA
Chain: KMC X10
Bottom Bracket: FSA Mega EXO
Rear Derailleur: Shimano GRX RX-400
Front Derailleur: Shimano Tiagra
Derailleur Shifter: Shimano GRX RX-400, 2x10
Freewheel/Cassette: Shimano HG500, 11x34

Braking System

Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-400 hydraulic

Wheels

Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Wheels/Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle

Other

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Saddle: Giant Approach
Seat Post: Giant D-Fuse, alloy, 14mm offset

Geometry

Giant 2025 Revolt 1
