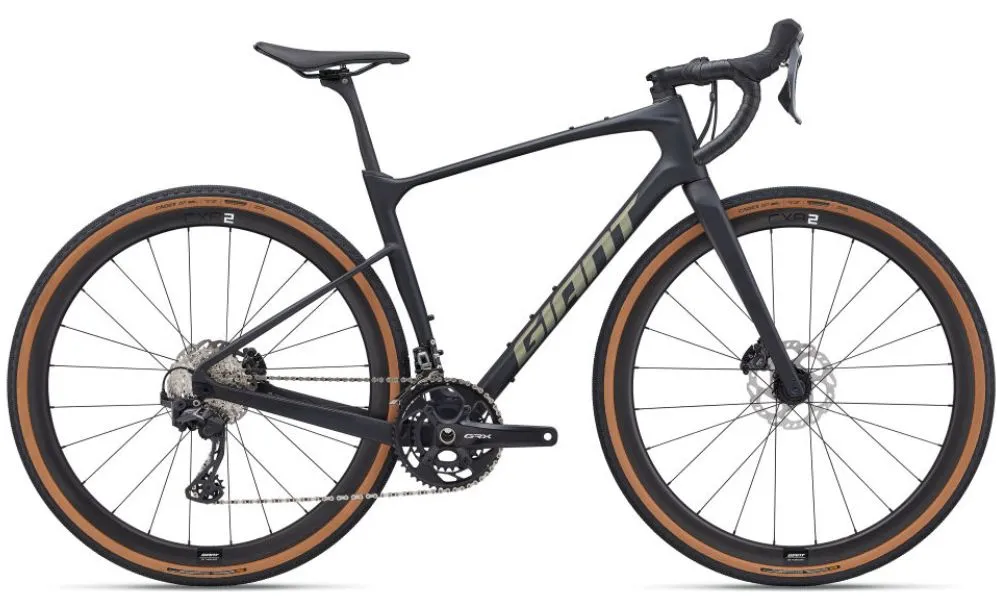

Giant 2024 Revolt Advanced 0
ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance
Specifications
Giant 2024 Revolt Advanced 0
Frame
Colour: CarbonFrame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock: NA
Drivetrain
Crankset: Shimano GRX RX-820, 31/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mmPedals:
Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano GRX RX-820
Front Derailleur: Shimano GRX RX-820
Derailleur Shifter: Shimano GRX RX-820, 2x11
Freewheel/Cassette: Shimano CS-HG710, 12-speed, 11x36
Wheels
Tyres: [F] and [R] CADEX AR, 700x40c, tubelessWheels/Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Braking System
Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mmBrake Levers: Shimano GRX RX-820 hydraulic
Other
Handlebar: Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cmStem: Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Saddle: Giant Approach
Seat Post: Giant D-Fuse, composite, 14mm offset
Geometry
Giant 2024 Revolt Advanced 0
-
- XS
- 155 cm 166 cm
-
- S
- 159 cm 171 cm
-
- M
- 169 cm 181 cm
-
- ML
- 174 cm 186 cm
-
- L
- 179 cm 191 cm
-
- XL
- 189 cm 200 cm
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D | HEAD TUBE LENGTH (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E | HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 78.0 | 72.0 | 68.0 | 65.0 | 65.0 | 65.0 |
| H | WHEELBASE (mm) | 1024 | 1020 | 1026 | 1031 | 1041 | 1056 |
| I | CHAIN STAY LENGTH (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| J | BOTTOM BRACKET DROP (mm) | 80 | 80 | 80 | 80 | 80 | 80 |
| K | STACK (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L | REACH (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M | STAND OVER HEIGHT (mm) | 7241 | 740 | 757 | 774 | 791 | 807 |
| N | HANDLEBAR WIDTH (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
| O | STEM LENGTH (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH (mm) | 170 | 170 | 172 | 172 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
