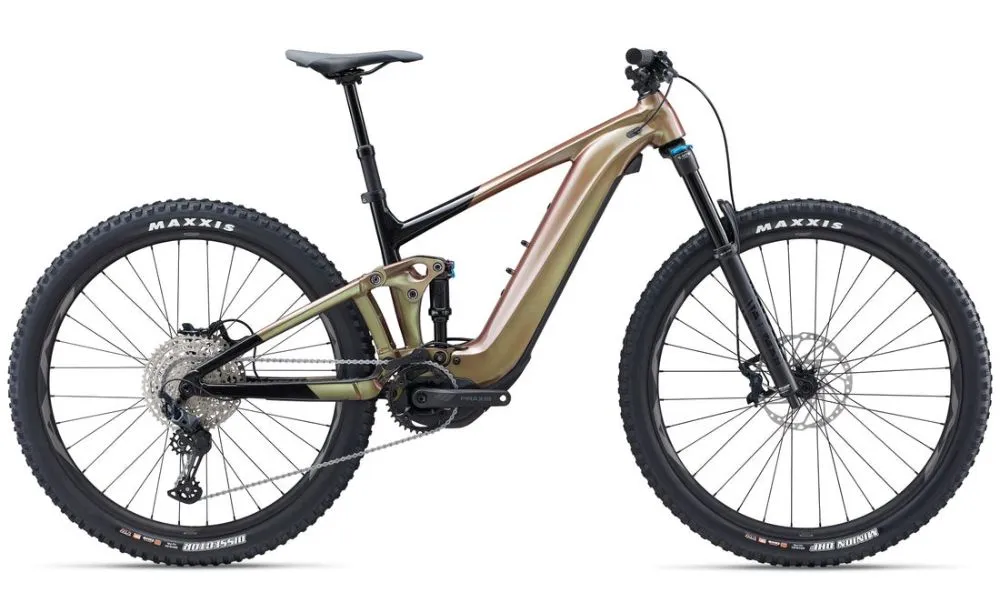

Giant 2023 Trance X E 2

Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding E-bike.

High-performance SyncDrive Pro motor delivers 85Nm of torque and 360 percent tunable support. The lightweight and durable ALUXX SL aluminium frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. Integrated RideControl Go and RideControl Ergo 3 units offer clean, simple control buttons, and the EnergyPak Smart 800Wh battery system increases range by up to 20 percent.

Smooth, powerful support

SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control

Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Specifications

Giant 2023 Trance X E 2

Frame

Colour: Messier/Black
Frame: ALUXX SL-Grade Aluminium, 140mm Maestro Suspension, flip chip, UDH hanger 12x148mm thru-axle Giant EnergyPak Plus Range Extender Compatible
Fork: Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimised
Shock: Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned

Drivetrain

Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set
Pedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano SLX, 12-speed, Shadow
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano SLX
Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Drive Unit: SyncDrive Pro, 85Nm, powered by Yamaha

Wheels

Tyres: [F] Maxxis Minion DHF 29x2.6"foldable, Tubeless, EXO , 3C MaxxTerra [R] Maxxis Dissector 29x2.6"foldable, Tubeless, EXO , 3C MaxxTerra
Wheels/Rims:Giant AM 29", Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock

Braking System

Brakes: Shimano SLX, BR-M7120, 4-piston, hydraulic disc,[F] 203mm, [R] 203mm
Brake Levers: Shimano SLX, I-spec EV

Other

Handlebar: Giant Contact TR35, alloy, 35mm
Stem: Giant Contact SL 35
Saddle: Giant Romero Trail
Seat Post: Giant Contact Switch dropper, remote
Battery: EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger: EnergyPak 6A smart charger
Control: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT Wireless display compatible

Geometry
